Machine Tools

Structural parts of Machine tools

01
CNC & conventional lathe
02
Milling machine
03
Grinding machine
04
Vertical & horizontal machining center
05
Double-column machining center
06
Electrical discharge machine
07
Boring machine

Material

Gray Iron Casting　/　Ductile Iron Casting
Meehanite Cast Iron

Meehanite cast iron-Specification comparison chart

Country		Specification / Standard		Gray Iron Casting
Meehanite Cast		Specification		GM400		GA350	GC275		GE200		GF150
Meehanite Cast		Reference Specification		GM400	GA350	GB300	GM275	GD250	GE225	GE200	GF150
Taiwan		CNS G3038			FC350
China		GB 9439			HT350
Japan		JIS G5501			FC350
U.S.		ASTM A48M / A48		400 60 Class	350 55 / 60 Class	300 / 325 45 Class	275 40 Class	250 35 Class	225 30 Class	200 25 Class	150 / 175 20 Class
U.S.		SAE J431B			G13H24	G13H22	G13H19	G11H20	G11H18	G10H18	G9H12
EU	U.S.	BS	EN1561		EN-GJL-350	EN-GJL-300		EN-GJL-250		EN-GJL-200	EN-GJL-150
	Germany	DIN
	France	NF
ISO		185			JL/350	JL/300	JL/275	JL/250	JL/225	JL/200	JL/150

Country		Specification / Standard		Ductile Iron Casting
Meehanite Cast		Specification		SFF350		SF400		SP600		SH700	SH800
Meehanite Cast		Reference Specification		SFF350	SFF400	SF400	SF420	SPF500	SPF600	SH700	SH800
Taiwan		CNS G2118		FCD350		FCD400	FCD450	FCD500	FCD600	FCD700	FCD800
China		GB 1348			QT400-18	QT400-15	QT450-10	QT500-7	QT600-3	QT700-2	QT800-2
Japan		JIS G5502		FCD350-22	FCD400-18	FCD400-15	FCD450-10	FCD500-7	FCD600-3	FCD700-2	FCD800-2
U.S.		ASTM A536			60-40-18	60-40-12	70-50-05	80-55-06	100-70-3		120-90-2
U.S.		SAE J434C				D400		D450	D550	D700	D800
EU	U.S.	BS	EN1563	EN-GJS-350-22	EN-GJS-400-18	EN-GJS-400-15	EN-GJS-450-10	EN-GJS-500-7	EN-GJS-600-3	EN-GJS-700-2	EN-GJS-800-2
	Germany	DIN
	France	NF
ISO		1083		JS/350-22	JS/400-18	JS/400-15	JS/450-10	JS/500-7	JS/600-3	JS/700-2	JS/800-2

Country	Specification / Standard	Austempered Ductile Iron (ADI)
Meehanite Cast	Specification	K295(K9007)	K325(K10006)	K405(K12003)
Japan	JIS G5503	FCAD 900-4/FCAD 900-8	FCAD 1000-5	FCAD 1200-2	FCAD 1400-1
EU	EN 1564	EN-GJS-800-8	EN-GJS-1000-5	EN-GJS-1200-2	EN-GJS-1400-1
U.S.	ASTM A897	900/650/9	1050/700/7	1200/850/4	1400/1100/2	1600/1300/1
ISO	17804	JS/900-8	JS/1050-6	JS/1200-3	JS/1400-1

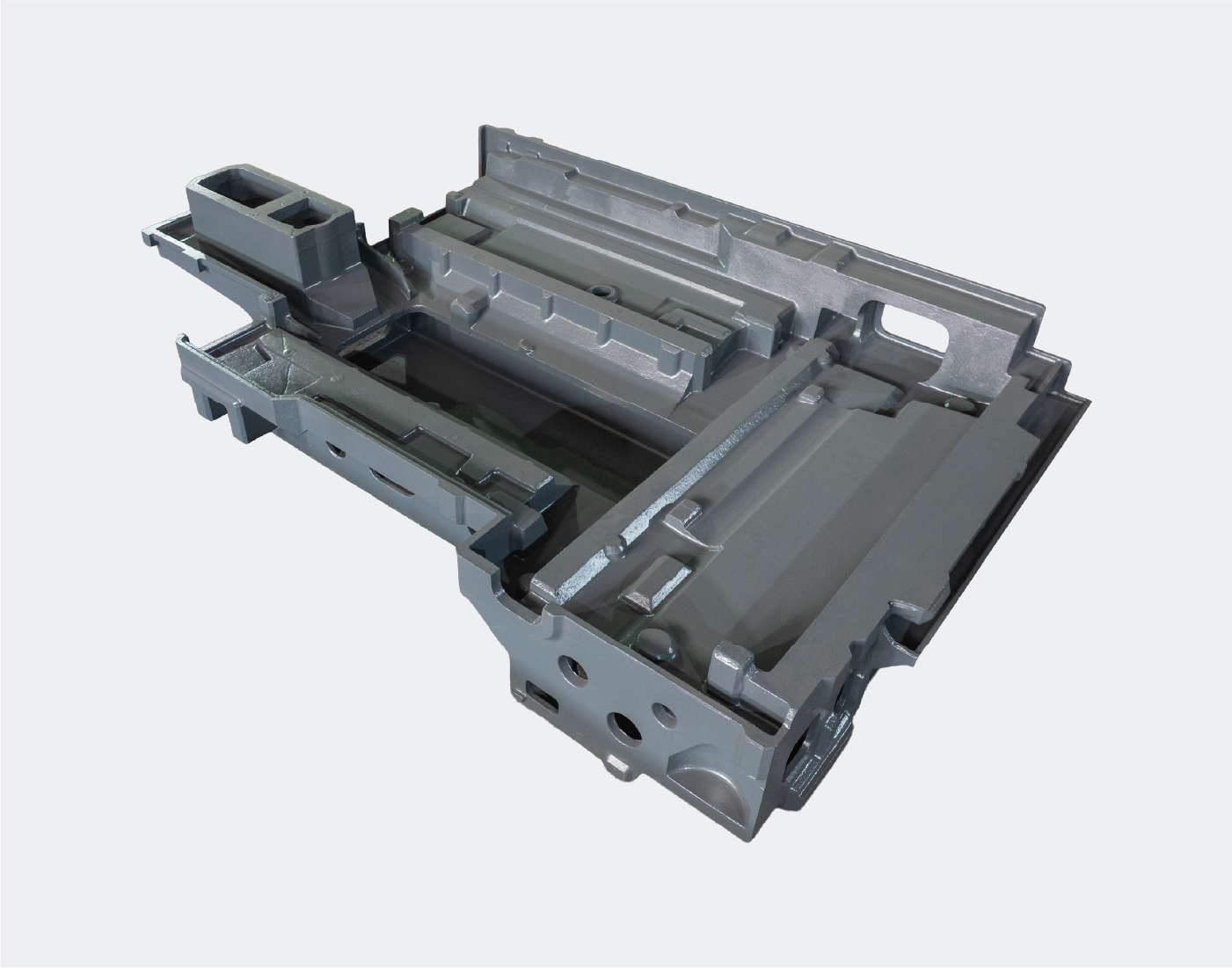

5 Axis Machine Center - Bed (4 tons)

Horizontal Machine-Bed

Vertical Lathe - Table

Gantry Machine - Table

Horizontal Machine - Column

Hobbing Machine - Column

Boring Machine – Column
(10 meters / 24 tons)
